ARMCO Pure Iron /
ARMCO Telar 57

Product Description

First developed in 1909 by the former American Rolling Mill Company, ARMCO Pure Iron soon became synonymous with the purest steel mill produced iron with a purity of more than 99.85 % Fe. The first heat of ARMCO Pure Iron to be produced in Europe was cast in Germany at 'Vereinigte Stahlwerke AG'.

In 1957 ARMCO Telar 57 was developed as a non-aging variant of ARMCO Pure Iron, in order to satisfy the specific needs of the electrical industry.

After a century of technical progress, ARMCO Pure Iron, because of its special properties, is still a very modern and widely used material satisfying various requirements of many of today's demanding industries. Its unique characteristics in numerous applications ranges from remelting to electromagnetic components and various delivery forms from remelting billet to pyrometer protection tubes are described on the following pages.




Characteristics

  • ARMCO Pure Iron:
    • Purest iron ever produced, Fe = 99.85%
    • Homogenous structure of pure ferrite containing exceptionally low level of carbon, oxygen and nitrogen, combined with a low incidence of non-metallic inclusions
    • Compared with mild steels the high purity results in a number of advantages such as:
      • Better resistance to corrosion, oxidation and chemical attack
      • Excellent electrical and magnetic properties
      • Excellent cold working properties
      • Excellent weldability
  • ARMCO Telar 57:
    • Soft magnetic iron providing excellent resistance to magnetic aging effects
    • High magnetic flux density
    • Low coercive force

Chemical Composition

ARMCO Pure Iron Grade 1* Grade 2 Grade 3* Grade 4
% max. max. max. max.
Carbon (C) 0.020 0.010 0.010 0.010
Manganese (Mn) 0.20 0.10 0.08 0.06
Phosphorus (P) 0.015 0.010 0.010 0.005
Sulphur (S) 0.015 0.008 0.005 0.003
Nitrogen (N) 0.007 0.006 0.005 0.005
Copper (Cu) 0.06 0.03 0.03 0.03
Cobalt (Co) ** ** ** 0.005
Tin (Sn) 0.010 0.010 0.010 0.005

* no regular production
** values not determined

ARMCO Telar 57 Telar 57 N Strip Telar 57 S Bar, Wire
% max. max.
Carbon (C) 0.015 0.020
Silicon (Si) Traces Traces
Manganese (Mn) 0.25 - 0.35 0.35 - 0.50
Phosphorus (P) 0.02 0.02
Sulphur (S) 0.015 0.015 - 0.030
Nitrogen (N) 0.005 0.005
Copper (Cu) 0.07 0.07
Aluminium (Al) 0.05 - 0.10 0.05 - 0.10

Applications

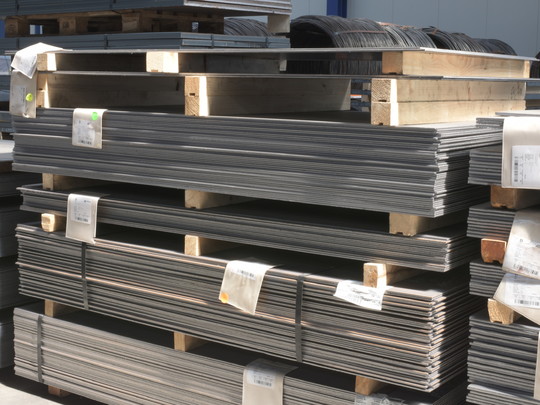

Delivery Program

ARMCO Pure Iron Semi-Finished Remelting

  • Billets / Blooms

    sq. 80 - 200 mm
    Length from 300 to 8,000 mm

    Material black or shot-blasted

  • Ingot

    320 x 320 mm
    Length from 1,000 to 5,000 mm

  • AME Bloom

    sq. 620 mm

ARMCO Pure Iron
ARMCO Telar 57 Finished Products

  • Roundbars, hot rolled

    Dia 20 - 180 mm

  • Roundbars, cold finished

    Dia 60 mm max.

  • Flatbars, hot rolled

    20 x 12 - 40 x 12 mm

  • Squarebars, hot rolled

    sq. 20 - 40 mm

  • HR Plates / HR Coils (wide and slit coil)

    Thickn. 3 - 130 mm

  • CR Sheets / CR Coils (wide and slit coil)

    Thickn. 0.8 - 2.99 mm

  • CR Slit Strip (Precision Strip)

    Thickn. 0.4 - 4.0 mm
    Width 4.0 - 320 mm

  • Wire Rod, in coils

    Dia 5.5 - 52 mm

  • CD Wire, in coils

    Dia 13 mm max.

  • Pyrometer Protection Tubes, seamless drawn

    22 x 5 mm

Other dimensions and forms on request!
